OSM network from a buffered coordinate

Use a buffered point to create a networkx graph from OSM.

Use this approach when you have a centre-point, such as a longitude and latitude, and you wish to create a network within a certain radius distance.

from cityseer.tools import io, plot

Define a longitude and latitude, and a buffer distance in meters.

lng, lat = -0.13396079424572427, 51.51371088849723
buffer = 500

A geometry can now be created using the buffered_point_poly function available from the cityseer package’s io module.

poly_wgs, epsg_code = io.buffered_point_poly(lng, lat, buffer)
print(epsg_code)
poly_wgs

4326

You can then use this geometry to specify the boundaries to be used for creating a network using the osm_graph_from_poly function.

G = io.osm_graph_from_poly(poly_wgs)
print(G)

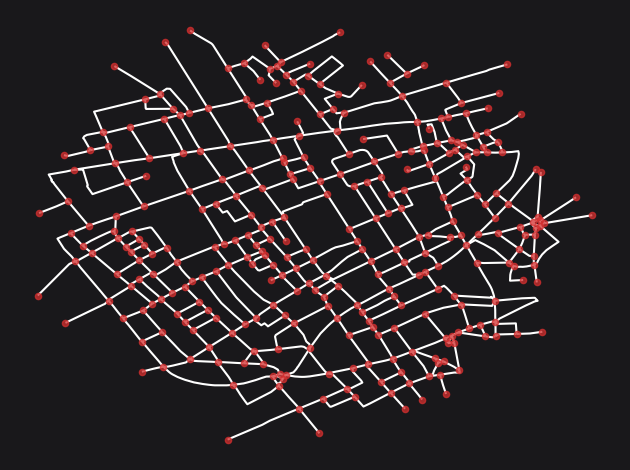

plot.plot_nx(G, plot_geoms=True)
